EJ/Customized
HSS-Co, M2, Carbide, High-quality HSS
Gear Hob
TiN,TiAlN,TiCN,AlCrN and so on
| Quantity: | |
|---|---|
Product Description
Material: They are typically made from high-speed steel (HSS), carbide, or other high-performance materials. The material choice ensures durability and the ability to withstand high cutting forces.
Tooth Profile: Power skiving cutters are designed with specific tooth profiles tailored to the gear specifications. These profiles could be involute or other custom profiles, depending on the gear requirements.
Coatings or Surface Treatments: Some cutters may have coatings like TiN (Titanium Nitride) or TiAlN (Titanium Aluminum Nitride) applied to enhance wear resistance and extend tool life.
Cutting Edge Geometry: The cutting edges are precisely engineered with specific rake angles, relief angles, and clearance angles to optimize cutting performance, chip evacuation, and minimize cutting forces.
Modifications for Helical Gears: For cutting helical gears, these cutters might have a designed helix angle to produce gear teeth at an angle relative to the gear axis.
Dimensions and Tolerances: The dimensions, including diameter, width, bore size, and specific tolerances, are critical for proper fit and functionality within the power skiving machine.
Precision and Accuracy: Power skiving cutters are manufactured with high precision to ensure accurate gear tooth profiles, contributing to the overall quality of the gears produced.
Compatibility and Mounting: They need to be compatible with the power skiving machine being used. Proper mounting and alignment are essential for efficient and accurate gear production.
Customization Options: Manufacturers might offer customization for specific gear requirements, such as non-standard tooth profiles or unique dimensions tailored to unique applications.
Material: Typically made from high-speed steel (HSS), cemented carbide, or other high-performance materials. The material choice is critical for durability, heat resistance, and the ability to withstand the forces encountered during the skiving process.
Tooth Profile: Designed with specific tooth profiles tailored to the gear requirements. Common profiles include involute or customized profiles based on the gear specifications.
Coatings or Surface Treatments: Some cutters might have coatings like TiN (Titanium Nitride) or TiAlN (Titanium Aluminum Nitride) applied to enhance wear resistance and extend tool life.
Module or Diametral Pitch: Defines the gear size and tooth spacing. The cutter's parameters are selected based on the gear module or diametral pitch.
Pressure Angle: Determines the angle between the tooth face and the gear's tangent. Common pressure angles are 14.5 degrees, 20 degrees, etc., and the cutter's design accommodates these angles.
Number of Teeth: Each cutter is designed for a specific number of gear teeth. Changing the tooth count requires a different cutter.
Helix Angle (if applicable): For cutting helical gears, the cutter might have a designed helix angle to produce gear teeth at an angle relative to the gear axis.
Dimensions and Tolerances: The cutter's dimensions, including diameter, width, bore size, and specific tolerances, are crucial for proper fit and functionality within the skiving machine.
Cutting Edge Geometry: Precision-engineered cutting edges with specific rake angles, relief angles, and clearance angles to optimize cutting performance and chip evacuation.
Compatibility and Mounting: The cutter needs to be compatible with the power skiving machine being used. Proper mounting and alignment are essential for efficient and accurate gear production.
Manufacturer's Guidelines and Recommendations: Adhering to the manufacturer's guidelines, specifications, and recommendations for usage, maintenance, and tooling parameters is essential for optimal performance.
The Cutter Itself: The primary component is the power skiving cutter, manufactured with precision and accuracy to cut specific gear tooth profiles during the power skiving process.
Specifications and Documentation: Detailed specifications accompany the cutter, providing information about its dimensions, tooth profile, module or diametral pitch, pressure angle, number of teeth, and any other relevant technical data.
Material Information: Details about the material composition of the cutter, heat treatment, coatings (if any), and surface treatments that enhance durability and performance.
Packaging: The cutter might be packaged securely to prevent damage during transportation or storage. It could be protected in a container or packaging designed to maintain its precision.
Instructions for Use: Guidance or manuals might be included, offering instructions on mounting, usage, and maintenance. This could involve details about the compatible power skiving machines, setup procedures, and care recommendations.
Quality Assurance or Certification: Some manufacturers provide quality assurance certificates or documentation attesting to the cutter's conformance to specific standards or quality control measures.
Customization Options (if applicable): If you've ordered a custom cutter with unique specifications such as non-standard tooth profiles, special coatings, or specific materials for certain applications, documentation regarding these customizations would be included.
Support and Service Information: Contact details for customer support or technical assistance might be included in case of queries, issues, or the need for additional guidance regarding the cutter's usage or maintenance.
Safety Precautions: Information on safety measures, if applicable, ensuring users follow proper safety protocols when handling and using the power skiving cutter.
Power Skiving Cutter knowledge
Functionality: Power skiving cutters are designed for gear cutting through the power skiving process. This method involves using a cutting tool with a continuous rotary motion to produce gear teeth, either externally or internally, with high accuracy and speed.
Types and Designs: These cutters come in various types and designs, catering to different gear types, tooth profiles, and specific requirements. They can be tailored for generating specific profiles such as involute, helical gears, or customized forms based on gear specifications.
Material Composition: Power skiving cutters are typically made from high-speed steel (HSS), cemented carbide, or other advanced materials. Material selection is crucial to withstand the cutting forces, maintain sharpness, and ensure durability.
Tooth Profile and Parameters: The cutter's design considers various parameters like module or diametral pitch, pressure angle, number of teeth, helix angle for helical gears, and specific dimensions tailored to match the gear specifications.
Coatings and Treatments: Some power skiving cutters feature coatings or treatments like TiN (Titanium Nitride) or TiAlN (Titanium Aluminum Nitride) to improve wear resistance, reduce friction, and enhance tool life.
Precision and Accuracy: These cutters are manufactured with high precision to ensure accurate gear tooth profiles, contributing significantly to the overall quality of the gears produced.
Compatibility and Mounting: Proper mounting and alignment of the cutter within the power skiving machine are essential for precise and efficient gear cutting. Compatibility with the machinery used is crucial for optimal performance.
Maintenance and Care: Regular maintenance, such as cleaning, inspection for wear or damage, and occasional reconditioning, is necessary to preserve cutting precision and prolong the cutter's lifespan.
Applications: Power skiving cutters find applications in industries requiring gears, including automotive, aerospace, and machinery manufacturing, where high-precision gear components are vital.
Manufacturer Guidelines: Adhering to the manufacturer's guidelines, specifications, and recommendations regarding usage, maintenance, and tooling parameters is critical for achieving optimal performance and longevity of the cutter.
Power Skiving CutterWARNING
Sharp Cutting Edges: Power skiving cutters have extremely sharp cutting edges designed for precision cutting. Handle them with extreme care to avoid accidental cuts or injuries. Always wear appropriate personal protective equipment (PPE), including gloves and eye protection.
Proper Handling and Storage: Mishandling power skiving cutters can lead to damage to the cutting edges or affect their precision. Always handle them with care and avoid dropping or causing impact to maintain the cutter's sharpness. Store them properly in dedicated containers or holders to prevent damage.
Correct Mounting and Setup: Incorrect mounting or setup of the cutter in the power skiving machine can lead to tool breakage, poor gear quality, or machine damage. Follow the manufacturer's guidelines precisely for mounting, alignment, and securing the cutter in the machine.
Machine Compatibility: Ensure that the power skiving cutter is compatible with the specific power skiving machine being used. Using incompatible tools or machines can result in poor performance, tool damage, or accidents.
Maintenance and Inspection: Regularly inspect the cutter for any signs of wear, damage, or dulling of the cutting edges. Perform maintenance as necessary, such as sharpening or reconditioning, following recommended intervals and procedures.
Appropriate Use: Use the power skiving cutter within its specified parameters and intended purpose. Avoid applying excessive force or inappropriate feed rates during the cutting process, as it may damage the cutter or compromise gear quality.
Material and Operating Conditions: Ensure that the cutter material and design match the operating conditions such as temperature, material hardness, and gear specifications. Using an incompatible cutter for specific conditions may lead to premature wear or tool failure.
Training and Expertise: Only trained and experienced operators should handle power skiving cutters and operate power skiving machinery. Adequate training ensures safe handling, setup, and operation, reducing the risk of accidents or damage.
Manufacturer Guidelines: Always adhere to the manufacturer's instructions, warnings, and recommendations provided with the power skiving cutter. These guidelines are essential for safe and efficient usage.

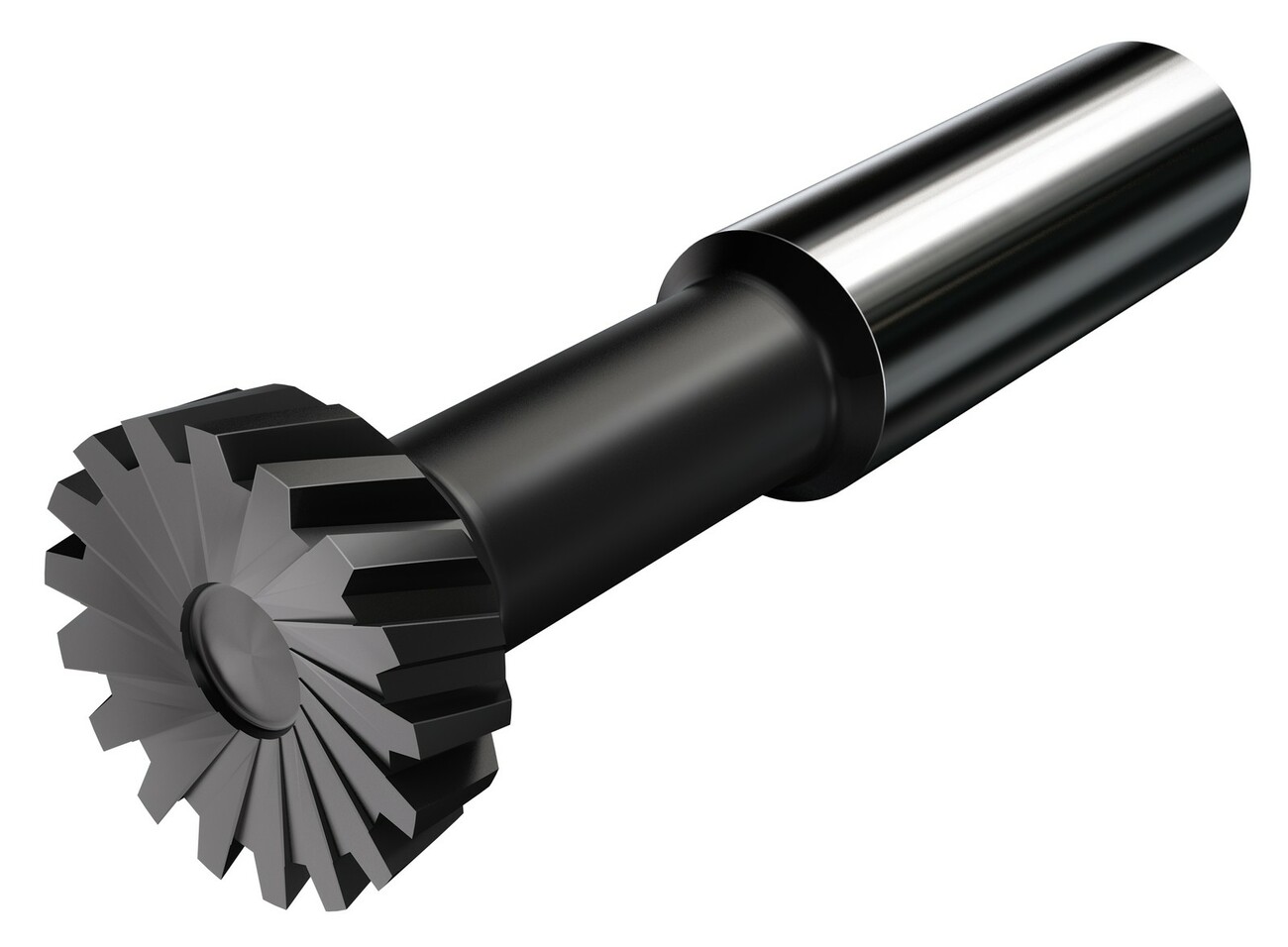

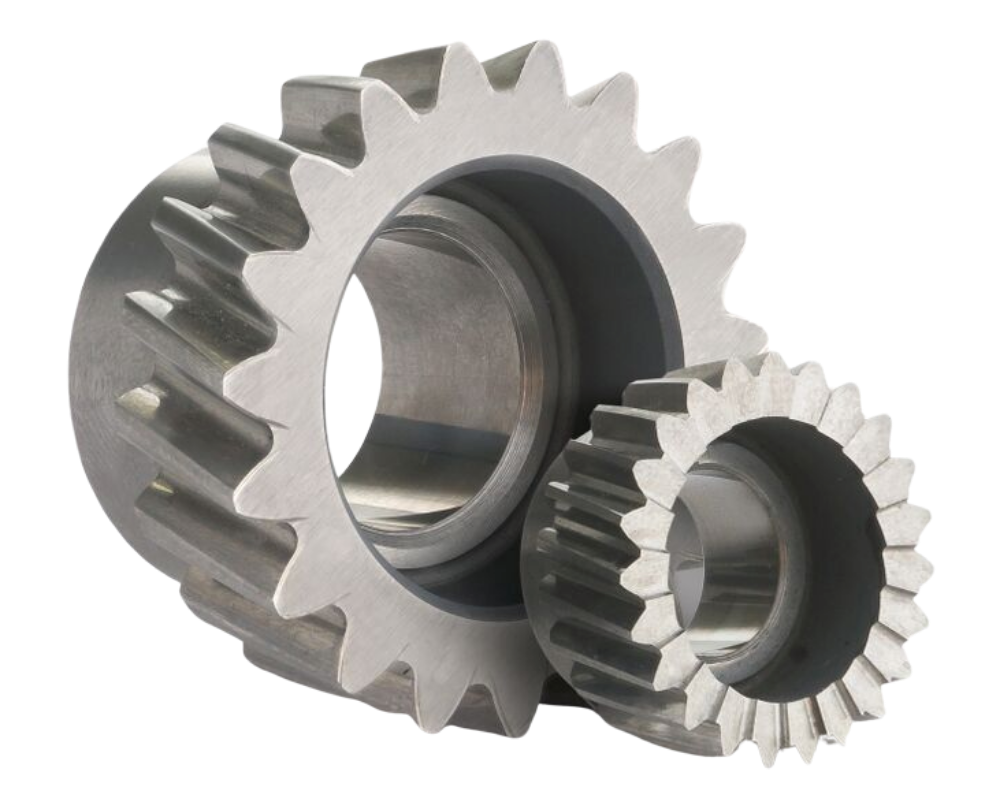

A power skiving cutter is a specialized cutting tool used in power skiving, a gear cutting process that involves the continuous rotary motion of the cutter to produce internal or external gear teeth with precision.
Power skiving cutters are mounted on power skiving machines and operate with a continuous rotary motion to remove material gradually, shaping gear teeth accurately and efficiently.
Power skiving cutters are versatile and can produce various types of gears, including spur gears, helical gears, internal gears, and more, with precise tooth profiles.
These cutters are typically made from high-speed steel (HSS), carbide, or other durable materials, ensuring they withstand cutting forces and maintain sharpness.
Selection involves considering gear specifications like module or diametral pitch, pressure angle, number of teeth, material being cut, and machine compatibility. Follow manufacturer guidelines for proper selection.
Yes, many power skiving cutters can be reconditioned or resharpened to restore their cutting edges. Professional reconditioning ensures precision and effectiveness.
Wear appropriate personal protective equipment (PPE), handle cutters with care to avoid injuries, follow correct mounting procedures, and operate within specified parameters to prevent accidents.
Some manufacturers offer customization options, providing tailored tooth profiles, unique dimensions, or special coatings based on specific gear-cutting needs.
Power skiving cutters are utilized in industries such as automotive, aerospace, and machinery manufacturing, where precision gears are essential in mechanical systems.
Regular maintenance includes cleaning, inspection for wear or damage, occasional reconditioning, and proper storage to ensure cutting precision and longevity.
