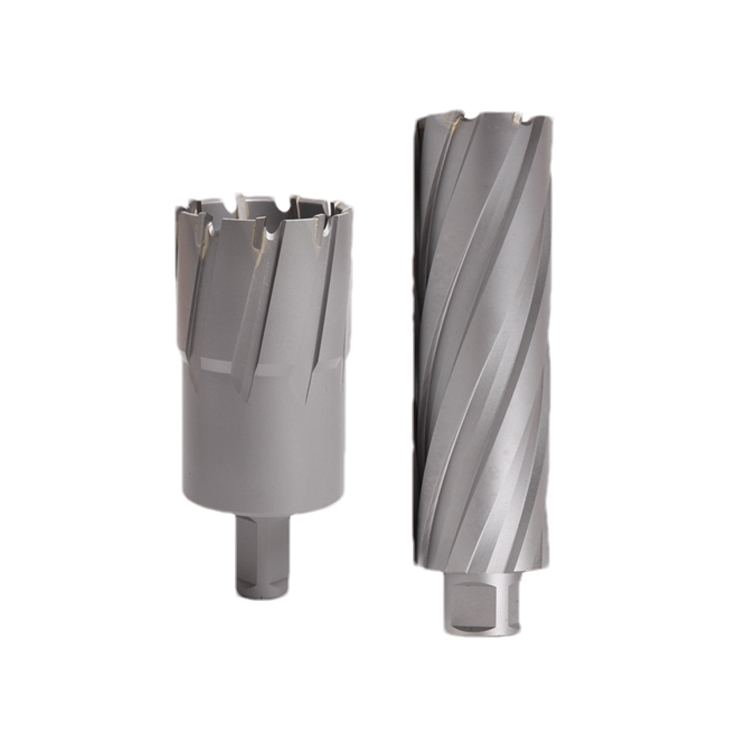

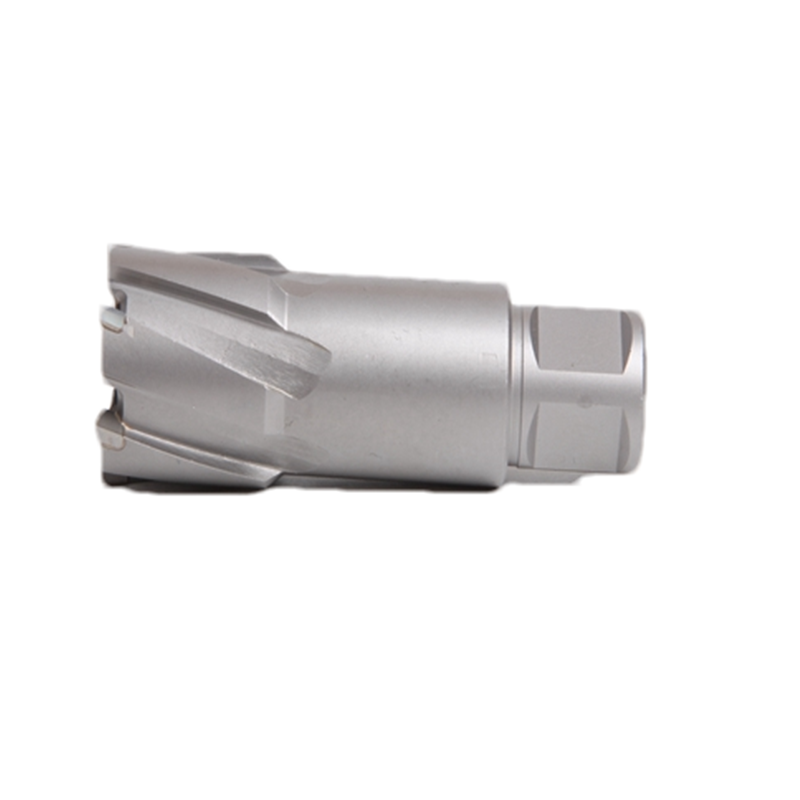

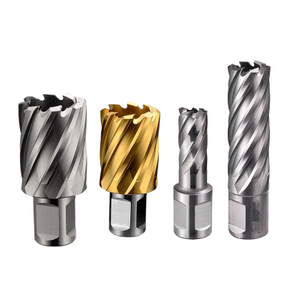

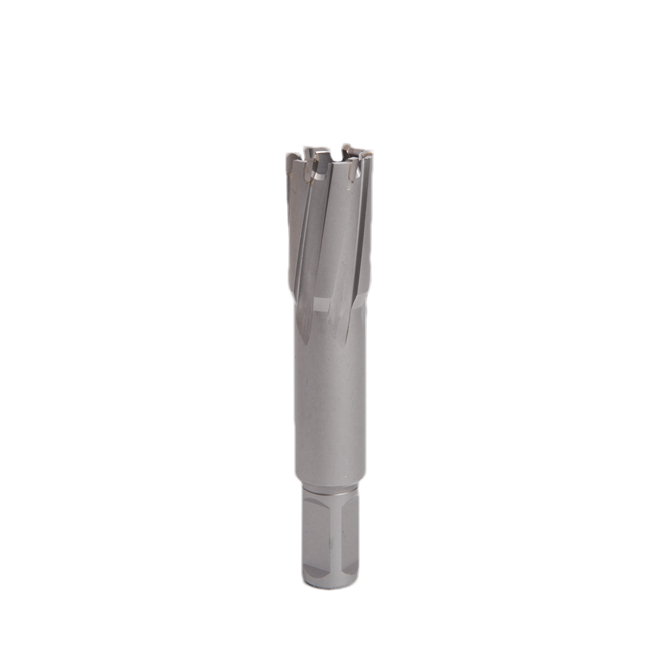

Product Description
Durable Tungsten Carbide Tips: Long-lasting cutting edges for extended tool life.
Versatile Cutting Performance: Efficiently cuts steel, stainless steel, cast iron, and more.
Precision Design: Accurate geometry ensures clean and smooth cutting operations.
Optimized Flute Design: Facilitates chip removal and heat dissipation for smoother cuts.
Compatibility & Adaptability: Fits various drilling machines and offers different shank types.
Safety and User-Friendly: Stable grip, reduced vibration, and user-friendly operation.
Wide Size Range: Available in various diameters and cutting depths for diverse applications.
Heat and Wear Resistance: Withstands high temperatures and maintains cutting efficiency.
Easy Maintenance: Simple cleaning and sharpening procedures for prolonged use.
Quality Assurance: Manufactured to industry standards with warranties for reliability.
TCT Annular Cutter Down Load
TCT Annular Cutter Catalog.pdf
Material: Tungsten Carbide Tips with High-Quality Steel Body.
Diameter Range: Available in various sizes, typically from 12mm to 200mm.
Cutting Depth: Varies from 25mm to 150mm depending on the cutter size.
Shank Types: Offered in different shank designs to fit diverse drilling machines.

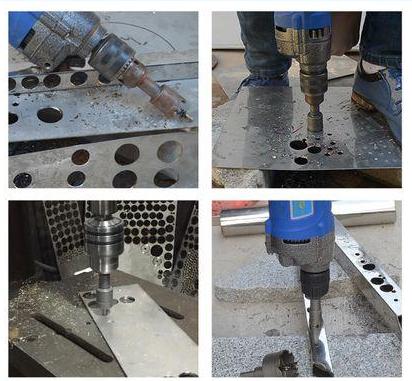

Applications: Suitable for steel, stainless steel, cast iron, and aluminum.
Operating Speed: Typically used at recommended cutting speeds for optimal performance.
Packaging: Sold individually or in sets, based on customer requirements.
Certifications: Compliant with industry standards for quality and performance.
Warranty: Often backed by warranties or quality assurances for reliability.
Accessories: Some models may come with additional accessories for convenience.
TCT Annular Cutter Factory Show
Purpose: TCT (Tungsten Carbide Tipped) Annular Cutters are specialized cutting tools used in metalworking applications to create clean, precise holes in various metals. They are commonly employed in drilling operations in industries like manufacturing, construction, and metal fabrication
Construction: TCT Annular Cutters consist of a solid body with Tungsten Carbide cutting edges welded onto the head. The Tungsten Carbide tips are extremely hard and durable, allowing them to maintain sharpness and withstand high heat and friction encountered during drilling.
Efficiency and Precision: These cutters are preferred over traditional twist drills for their efficiency and precision. They cut only the periphery of the hole, leaving a solid core which reduces waste material and enhances drilling speed. Their design also produces cleaner and more accurate holes, often eliminating the need for secondary operations or rework.
Compatibility and Sizes: TCT Annular Cutters are available in various sizes, typically measured by the diameter of the hole they create. They are used with specialized magnetic drilling machines or drill presses equipped with an appropriate arbor or chuck to hold and rotate the cutter.
Safety Gear Requirement: Always wear appropriate personal protective equipment (PPE) when operating TCT Annular Cutters. This includes safety goggles or a face shield to protect your eyes and a pair of gloves to shield your hands from potential metal shavings or debris.
Proper Machine Compatibility: Ensure the TCT Annular Cutter is compatible with the specific drilling machine being used. Improper matching of the cutter and the machine can result in increased risk of accidents, including breakage or improper cutting.
Correct Speed and Feeding: Operating the cutter at the recommended speed and with appropriate feeding pressure is crucial. Running the cutter at excessively high speeds or using excessive pressure can lead to overheating, premature wear, or breakage of the cutting edges.
Material Compatibility: Use TCT Annular Cutters only on materials they are designed for, such as steel, stainless steel, aluminum, etc. Attempting to drill materials beyond their design capabilities can damage the cutter and lead to unsafe conditions.
Inspect for Damage: Before each use, inspect the cutter for any signs of damage, such as chipping or dulling of the Tungsten Carbide tips. Using a damaged cutter can result in poor cutting performance, increased vibration, and potential breakage during operation.
Coolant and Lubrication: Depending on the material being drilled, proper coolant or lubrication might be necessary to dissipate heat and prolong the cutter's lifespan. Always follow manufacturer guidelines for appropriate coolant/lubrication application.
Storage and Handling: Store TCT Annular Cutters properly in a dry and secure location. Improper storage can lead to damage or corrosion, affecting the performance of the cutter during use.
1.What is a TCT Annular Cutter?
A TCT Annular Cutter is a specialized cutting tool used in metalworking applications to create precise and clean holes in metals. It features Tungsten Carbide tips for durability and efficient cutting.
2.What materials can TCT Annular Cutters drill?
TCT Annular Cutters are designed primarily for drilling holes in metals such as steel, stainless steel, aluminum, copper, and other non-ferrous materials.
3.How do TCT Annular Cutters differ from traditional twist drills?
Unlike twist drills that remove material by cutting through the entire circumference of the hole, TCT Annular Cutters only cut the periphery, leaving a solid core. This reduces waste material and provides faster, more precise drilling.
4.What sizes are available for TCT Annular Cutters?
TCT Annular Cutters come in various diameter ranges, typically from small sizes like 12mm to larger diameters exceeding 100mm. The specific sizes vary based on manufacturer offerings and application requirements.
5.What machines are compatible with TCT Annular Cutters?
These cutters are used with specialized drilling machines or magnetic drilling machines equipped with appropriate arbors or chucks to hold and rotate the cutter securely during drilling operations.
6.How long do TCT Annular Cutters last?
The lifespan of TCT Annular Cutters depends on several factors such as the material being drilled, cutting speed, coolant/lubrication use, and adherence to recommended operating parameters. With proper care and usage, they can have a long service life.
7.Can TCT Annular Cutters be resharpened or reconditioned?
TCT Annular Cutters with Tungsten Carbide tips can be re-sharpened or reconditioned by specialized tooling companies. However, the extent to which they can be reconditioned depends on the wear and damage to the cutting edges.
8.Are there safety precautions when using TCT Annular Cutters?
Yes, always wear appropriate personal protective equipment (PPE) such as safety goggles, gloves, and hearing protection. Ensure the cutter is properly secured, and follow manufacturer-recommended cutting speeds and feeds to prevent accidents and ensure efficient cutting.
