Advancements And Utilization of High-Speed Steel Annular Cutters

High-speed steel (HSS) annular cutters have become an integral component within the metalworking sector, renowned for their efficacy, resilience, and precision. These tools are engineered to produce clean, accurate apertures in a multitude of materials, ranging from steel to non-ferrous metals. This discourse aims to provide a detailed examination of the evolution, design principles, manufacturing methodologies, and applications associated with HSS annular cutters.

The Evolution of Annular Cutters:

The inception of annular cutting can be traced back to the early 20th century, a period marked by the burgeoning need for rapid and efficient hole creation methods within industrial contexts. Initially, conventional drill bits served as the primary means for generating holes; however, these tools often fell short in terms of precision and speed. The emergence of annular cutters represented a significant enhancement, facilitating the production of holes with a smooth finish and elevated accuracy at a fraction of the time required by traditional methods.

Design and Characteristics of HSS Annular Cutters:

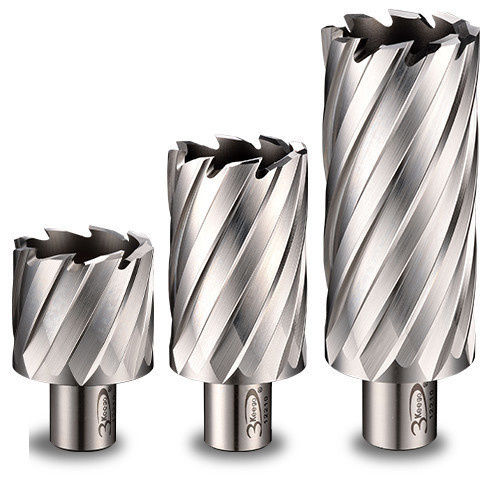

HSS annular cutters are distinguished by their distinctive architecture, comprising a tubular body equipped with cutting edges and chip clearance channels. The cutting edges are crafted from high-speed steel, an alloy celebrated for its capacity to maintain hardness at elevated temperatures and its exceptional resistance to wear. The design facilitates rapid chip evacuation and mitigates heat accumulation during the cutting process.

The cutting edges of an HSS annular cutter are typically beveled at an angle that optimizes cutting performance. This angle, in conjunction with the quantity of cutting edges, varies in accordance with the specific application and the material being machined. The central portion of the cutter is hollow, allowing for the expulsion of the core material, commonly referred to as the slug.

Manufacturing Process of HSS Annular Cutters:

The manufacturing process of HSS annular cutters is a detailed and precise operation, involving several critical stages to ensure the quality and performance of the final product. The process commences with the selection of premium high-speed steel blank rods, which are subsequently sectioned to the desired length. The rods are then subjected to grinding processes to shape the cutting edges and the requisite geometries.

Subsequent to grinding, the cutters undergo heat treatment, a pivotal phase that encompasses hardening and tempering the steel to attain the desired hardness and toughness levels. The heat treatment process is stringently controlled to ensure that the HSS retains its cutting properties throughout its operational lifespan.

Upon completion of heat treatment, the cutters are honed to guarantee optimal cutting performance. This step is critical, as it determines the cutter's capacity to produce clean holes with minimal effort. Finally, the cutters are subjected to rigorous inspection for any defects and are subjected to quality assurance protocols to ensure they conform to industry standards.

Types of HSS Annular Cutters:

There exist several types of HSS annular cutters, each tailored for specific applications. Some of the most prevalent types include:

1. Standard HSS Annular Cutters: These are the most adaptable and extensively utilized cutters, appropriate for a wide array of materials and hole dimensions.

2. Heavy Duty HSS Annular Cutters: Engineered for use in challenging materials such as stainless steel and hardened steel, these cutters feature augmented wall thickness and more robust cutting edges.

3. Bi-Metal Annular Cutters: Combining the hardness of HSS with the toughness of carbon steel, bi-metal cutters are ideal for extreme cutting conditions and high-volume applications.

4. Indexable Annular Cutters: These cutters are equipped with replaceable cutting inserts, facilitating extended tool life and reduced costs.

Applications of HSS Annular Cutters:

HSS annular cutters are employed across a spectrum of industries, including automotive, aerospace, construction, and manufacturing. They are particularly valuable in applications where precision and efficiency are of paramount importance. Some common applications include:

1. Drilling holes for bolts and fasteners in structural steel and metal plates.

2. Creating holes for pipes and conduits in fabrication and installation projects.

3. Manufacturing components that necessitate precise hole placement and finish.

4. Repair and maintenance work, where rapid and accurate hole-making is essential.

Advantages of HSS Annular Cutters:

The advantages of HSS annular cutters over traditional drill bits and other hole-making implements are numerous. Some of the key benefits encompass:

1. Accelerated Cutting Speeds: HSS annular cutters can penetrate materials at elevated speeds, thereby reducing overall machining duration.

2. Enhanced Hole Quality: The design of annular cutters results in smoother hole finishes, frequently negating the necessity for secondary operations.

3. Prolonged Tool Life: The durability of HSS facilitates extended tool life, even when employed in rigorous applications.

4. Cost Efficiency: Despite their higher initial cost compared to standard drill bits, the efficiency and longevity of HSS annular cutters render them a cost-effective solution over time.

5. Versatility: HSS annular cutters are suitable for a broad spectrum of materials and hole dimensions, making them a versatile tool for any workshop.

Conclusion:

High-speed steel annular cutters have significantly transformed the metalworking industry with their superior cutting performance, efficiency, and versatility. As technology continues to progress, further refinements in the design and manufacturing of these essential tools are anticipated, expanding their capabilities and applications even further. Whether for routine manufacturing tasks or specialized engineering projects, HSS annular cutters will undoubtedly remain a cornerstone of precision hole-making for the foreseeable future.
